Advanced Industrial Robotics & IO-Link Training System
This Industrial Robotics Training System is a turnkey solution designed for technical colleges, trade schools, and corporate training centers. It bridges the gap between basic automation and complex factory floor integration, featuring a professional-grade Yamaha SCARA Robot and a modern IO-Link architecture.
This station is designed to integrate seamlessly with CompactLogix and Compact GuardLogix trainers but offers the flexibility to connect with any ControlLogix, CompactLogix, or Compact GuardLogix PLC.
Key Learning Outcomes
Robotic Workcell Integration: Students move beyond simple programming to understand how a robot interacts with its environment, safety circuits, and master controllers.

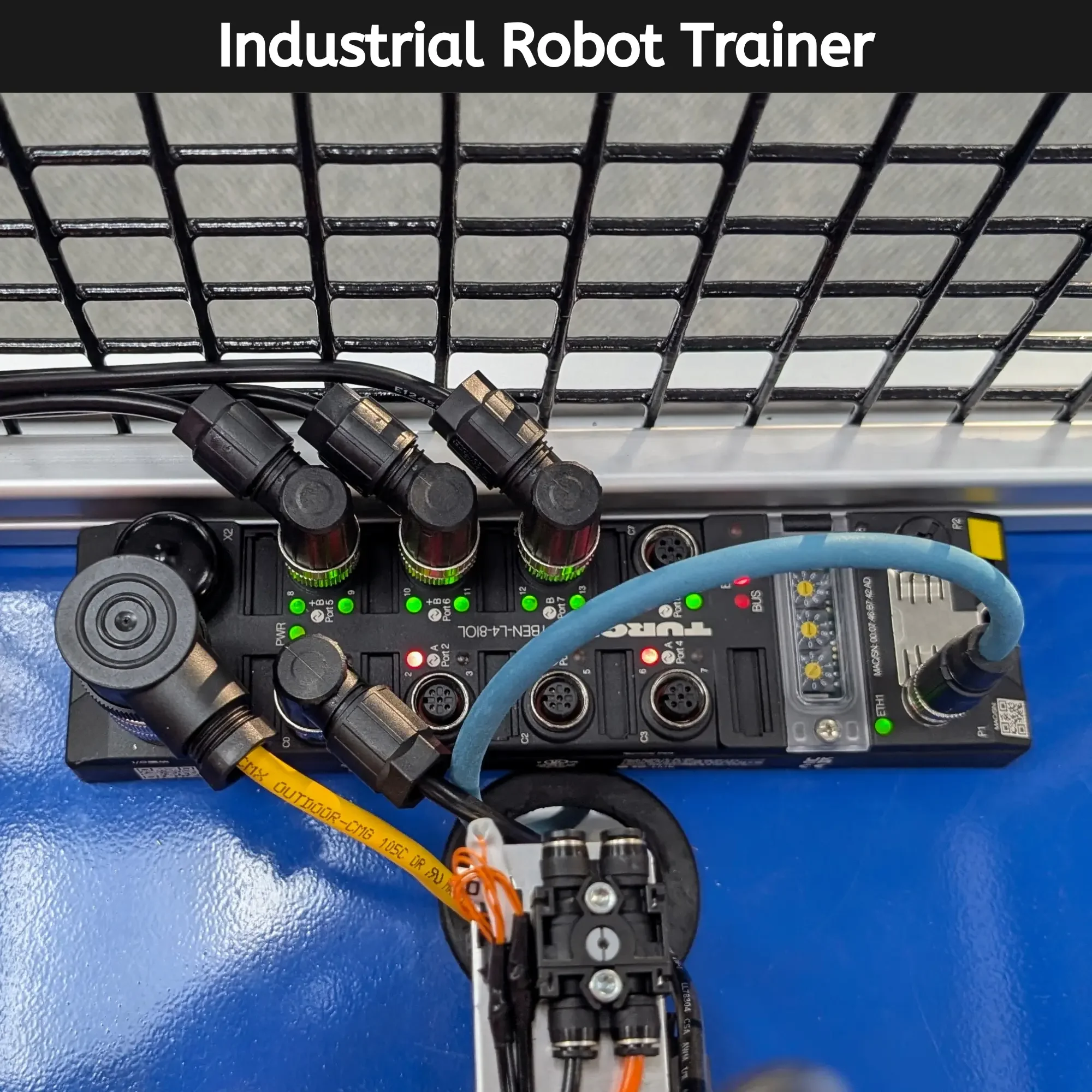

Smart Sensor Communication: Utilizing the onboard Turck IO-Link Master, learners gain experience with Industry 4.0 data diagnostics and remote sensor configuration.
Industrial Networking: Features a Siemens backbone for teaching EtherNet/IP and industrial Ethernet topology.
Safety Protocol Compliance: Teaches the importance of hardware-based safety, including interlocked guarding and E-stop integration.
System Components

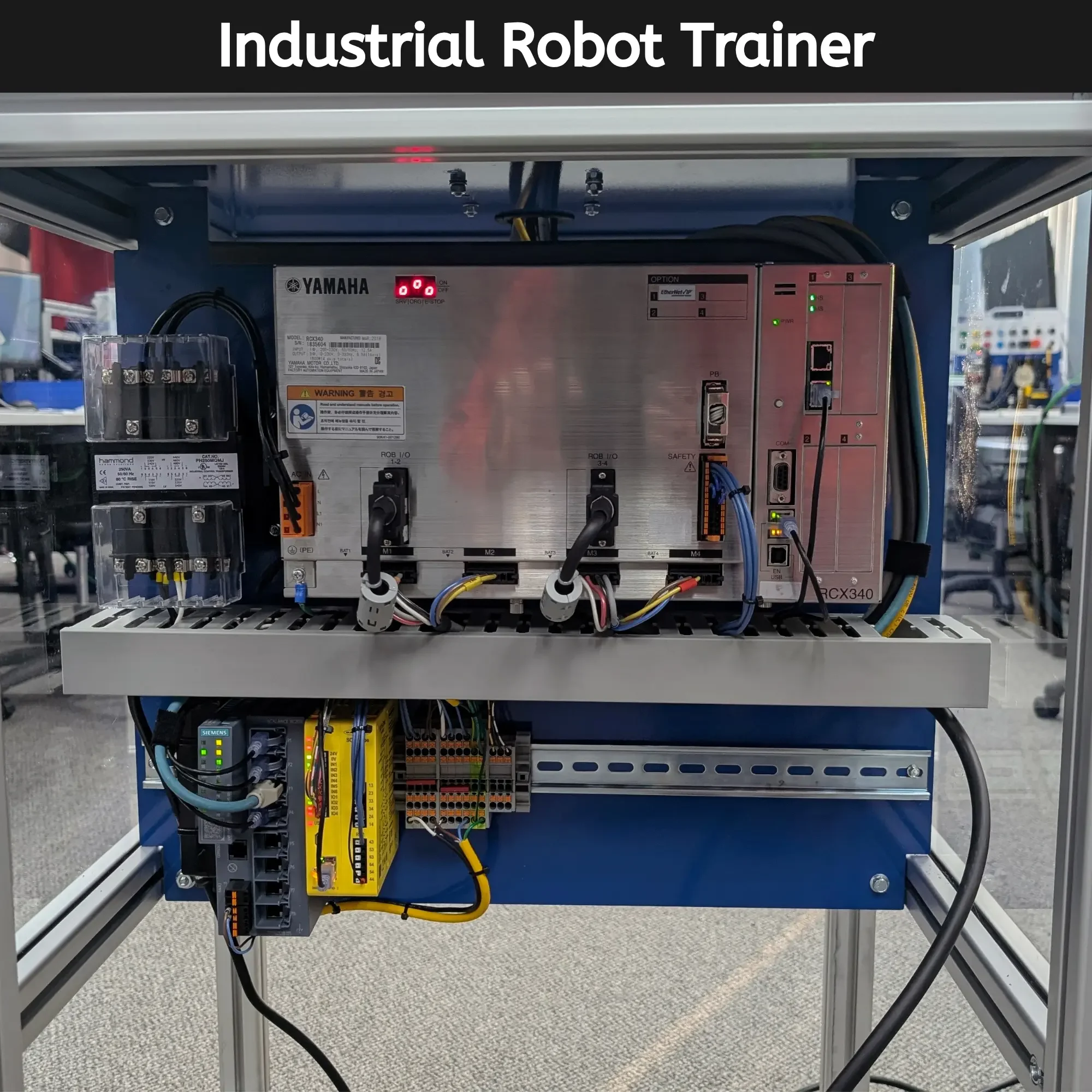

ComponentIndustry RoleYamaha RCX340 ControllerHandles high-speed motion control and complex logic.Turck IO-Link BlockFacilitates decentralized I/O and smart device communication.Siemens Managed SwitchProvides the network infrastructure for multi-device connectivity.Safety EnclosureFeatures aluminum extrusion, wire mesh, and magnetic interlocks.Operator InterfaceIndustrial-grade push buttons for Start, Stop, and Reset.
Built for the Classroom
Seamless PLC Integration: Optimized for use with CompactLogix and Compact GuardLogix platforms. The system is designed to handshake directly with your existing PLC trainers via EtherNet/IP.
Mobile & Self-Contained: The station is built on a heavy-duty rolling frame with locking casters, allowing it to be shared between different labs or stored securely when not in use.
Transparent Learning: The clear guarding and open-panel design allow students to see the wiring, terminal blocks, and diagnostic LEDs while the system is in operation.
High-Purity Hardware: This station uses actual industrial components rather than "educational versions," ensuring that the skills learned in the lab translate directly to the workforce.
What's Included
Yamaha SCARA Robot & RCX340 Controller
Full Industrial Safety Guarding Package
Pre-wired Control Section with 24VDC Power Distribution
Turck IO-Link Master & Siemens Ethernet Switch
Sample Workpieces for Pick-and-Place Exercises
Prepare your students for the modern manufacturing landscape with a trainer that uses the gear they will see in the field.
