In this lesson we are going to learn which rung "wins" when you have two output instructions addressing the same output. This is the first of a three part series.

In the Rslogix 500 - Online Edits lesson you were left with a program that had multiple output instructions addressing the same physical output. This is called having duplicate outputs. You may have heard there are "rules" that don't allow you to do this. Some instructors even take points off if you do this even if your program works. We are not saying this is a good practice, but "rules" are usually rooted in a lack of understanding of how a PLC handles a certain situation.

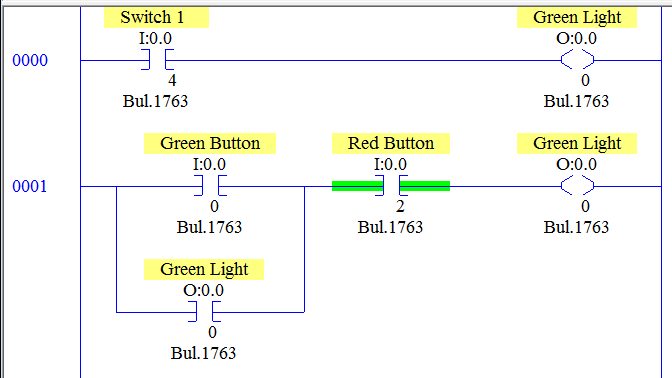

The first part of this should be done without the PLC or RsLogix 500. Looking at the two rungs in the image below, answer the questions below the image.
